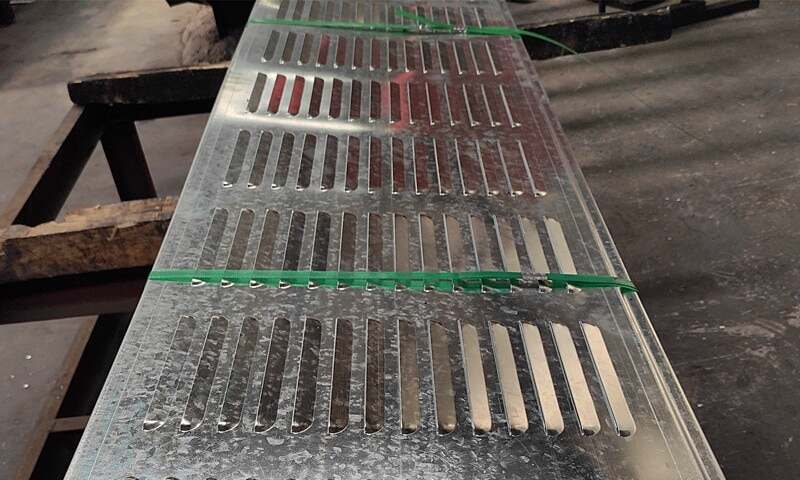

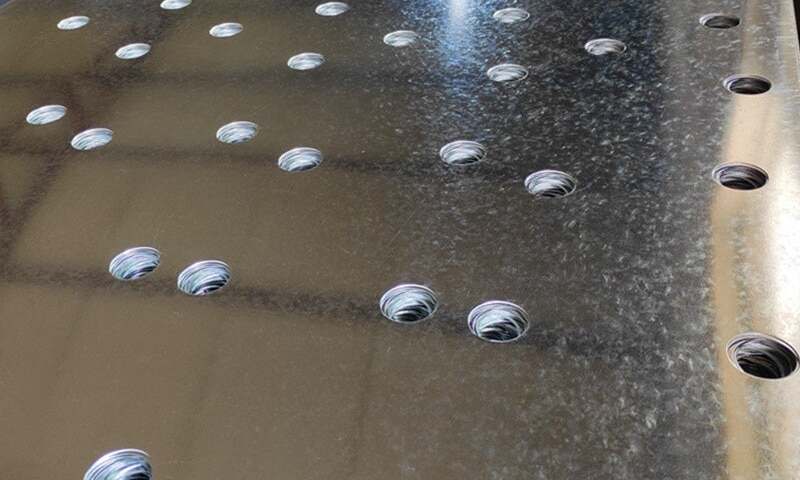

Galvanized perforated metal sheets are widely used in architecture, industrial filtration, HVAC, machinery guards, and decorative façades. Their long-term performance depends not only on the base metal and hole pattern, but crucially on the adhesion of the zinc coating to the steel substrate and the sheet’s resistance to mechanical wear. This article walks through the main factors that influence adhesion and abrasion resistance, common failure modes, test methods you can specify, and practical production and design tips to maximize service life.
What “adhesion” means for galvanized perforated sheets
Adhesion refers to how well the zinc layer bonds to the underlying steel. Strong adhesion prevents flaking, chipping, or peeling when the sheet is bent, handled, or exposed to abrasion. For perforated panels, adhesion at the hole edges and around punched or laser-cut perimeters is especially important because these are stress concentrators where coating can be stretched, thinned, or mechanically damaged during forming.
There are two common galvanizing approaches:
- Electro-galvanizing (electroplating): produces a relatively thin, uniform zinc layer (typical range: roughly 5–25 µm) that is smooth and well-adhered if surface preparation is good. It’s often used when tight tolerances and smooth finish are required.
- Hot-dip galvanizing: yields a thicker metallurgical zinc-iron alloy layer plus an outer zinc layer (typical range: roughly 50–150 µm, depending on steel and process). Hot-dip coatings can be tougher in abrasion resistance but may be less uniform around fine perforations unless process parameters are controlled.
(These ranges are typical; ask your supplier for measured coating thickness for specific batches.)
Main factors that affect adhesion and wear resistance
1. Surface preparation
Clean, oxide-free steel surfaces bond better. Proper degreasing, pickling, and fluxing (for hot-dip) or controlled surface activation (for electro) reduce interfacial contamination. Poor prep = weak spots.
2. Hole forming method and edge condition
Punching, stamping, and laser cutting produce different edge geometries and subsurface strain:
- Punching/stamping can cause work-hardening and burrs at edges; burr removal and edge smoothing improve coating coverage.
- Laser cutting gives a different heat-affected edge and may require extra cleaning before galvanizing.
Edges with sharp burrs or micro-cracks are prone to coating breakage and subsequent wear.
3. Pattern density and open area
High open-area designs (large holes or many holes per area) reduce the coating surface available and create more edge length per square foot — more potential sites for mechanical damage and more complex flow during galvanizing (hot-dip) that can cause uneven buildup.
4. Coating type and thickness
Thicker coatings generally offer better sacrificial protection and improved abrasion resistance, but extreme thickness may chip if the substrate flexes. Electro coatings give precise thickness control; hot-dip tends to be more robust in aggressive environments.
5. Mechanical stresses in service
Repeated flexing, impact, or abrasive contact (sand, grit, or moving parts) will accelerate wear. Where high wear is anticipated, consider secondary surface treatments (powder coating, clear lacquer) over the galvanized layer for additional abrasion resistance.
6. Corrosion-wear synergy
In real environments, corrosion and abrasion interact: mechanically removed zinc exposes fresh steel that then corrodes faster. Good coating adhesion reduces zones of mechanical delamination and slows this cycle.
Typical wear mechanisms for perforated sheets
- Abrasive wear: repeated rubbing by particles or a mating surface cuts or removes coating and substrate.
- Adhesive wear: contact and stick–slip between two metal surfaces leading to material transfer.
- Erosive wear: high-velocity particles striking the surface (relevant in ducting or particulate-handling applications).
- Fatigue and fretting at edges: micro-motion at hole edges can cause crack initiation beneath the coating.
How to specify tests and acceptance criteria
If you need reliable purchase specs, ask suppliers to provide documented test results. Commonly-requested tests include:
- Coating thickness measurement: use magnetic or eddy-current gauges; specify minimum average thickness and minimum at hole edges.
- Adhesion check / bend test: simple bend tests or more formal pull-off adhesion tests verify coating integrity after forming.
- Abrasion resistance (Taber test): gives comparative wear rates under controlled conditions.
- Salt spray (corrosion) exposure (e.g., ASTM B117): helps predict corrosion behavior in chloride environments, but note real-world corrosion performance depends on many variables.
- Visual/optical inspection for coating continuity around hole perimeters and inner edges.
Tip: specify sampling frequency and acceptance thresholds in the purchase order (for example: coating ≥ X µm average; no bare steel visible at more than Y% of hole edges on a random sample).
Design and production recommendations to improve adhesion and durability
- Choose the right galvanizing method for the job: electrogalv for tight tolerances and smooth finish; hot-dip for thicker sacrificial protection where abrasion is expected.
- Specify hole sizes and sheet thickness that minimize edge deformation: very small holes in thick sheet increase punching strain; match hole diameter to sheet gauge for cleaner edges.
- Request edge treatment when needed: deburring, light roll-forming of edges, or passivation to improve adhesion and reduce mechanical chipping.
- Control open area: designs with very high open-area ratios increase edge length and susceptibility — consider slightly larger pitch or slightly smaller hole diameter to reduce total edge length when durability is critical.
- Consider post-coating topcoats: painting or powder coating over galvanized steel (pre-treatment + primer) can greatly improve abrasion resistance and aesthetic life, especially when combined with the sacrificial zinc layer underneath.
- Ask for batch traceability and test reports: ensure coating thickness and test certificates accompany critical orders.
Practical selection guide (quick checklist for buyers)
- Is the application primarily architectural (appearance) or industrial (abrasion/impact)?
- Architectural: electro-galv + topcoat for smooth finish.
- Industrial/abrasive: hot-dip galvanizing with controlled edge prep; consider thicker base metal.
- Do you need tight perforation tolerances? If yes, electro-galv or post-galv machining may be necessary.
- Is there a possibility of mechanical contact or particulate flow? If yes, specify abrasion testing and higher coating thickness or topcoat.
- For corrosive environments (coastal, chemical plant): prefer thicker galvanizing and consider duplex systems (zinc + paint).
Maintenance and field considerations
Simple maintenance extends service life: periodic visual inspections for exposed steel, prompt spot repairs (zinc-rich touch-up or localized coating), and cleaning to remove abrasive debris. In high-wear pathways, schedule replacement intervals rather than rely solely on repair.
Choosing the right combination of perforation design, base metal thickness, forming method, and galvanizing approach is the best way to balance cost, adhesion, and long-term wear resistance. When specifying perforated panels for demanding environments, insist on clear test data and discuss edge treatment and coating thickness in the purchase order.
