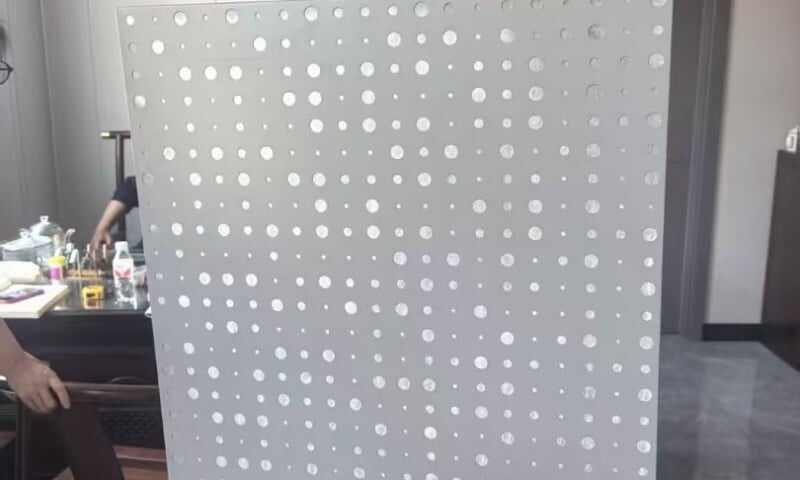

When people think of acoustic panels they often picture soft, fabric-wrapped boards. But metal — especially aluminum — plays a surprisingly effective role in controlling noise when designed properly. An aluminum perforated acoustic panel is more than a decorative metal face: it’s a carefully engineered system that lets sound through the front skin and uses an inner cavity and absorbing material to dissipate energy. The result is reduced reverberation and clearer speech intelligibility in spaces like auditoriums, offices, restaurants and transit hubs.
Natural-sounding rooms don’t always need big bulky absorbers. A slim perforated aluminum solution can deliver excellent mid-to-high frequency absorption while offering durability and a modern aesthetic.
The perforated face (aluminum skin)
The front layer is a metal sheet punched with holes — round, square, slotted or custom shapes. Hole diameter, hole pattern (pitch), shape and open area (percentage of the panel that is actually open) control how much sound energy passes into the cavity. Smaller, more closely spaced holes (micro-perforation) are often used when a slim profile is required or to tune absorption at specific frequencies.

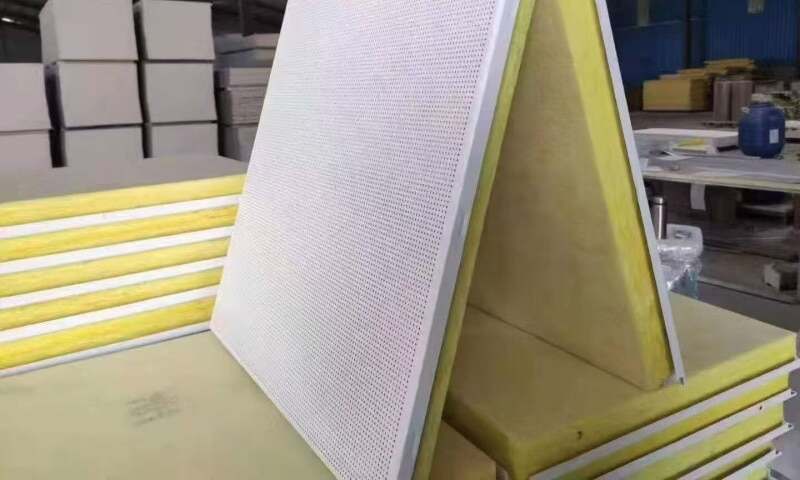

The backing and absorber (the workhorse)
Behind the perforated face sits an absorptive layer — often mineral wool, fiberglass, PET, or acoustic foam. This material converts the pressure fluctuations that enter the cavity into heat through friction. The backing’s thickness and flow resistivity influence which frequency bands are absorbed best. For broader low-frequency absorption, a thicker cavity or specialized absorbers are used.
The air cavity and spacing
The distance between the perforated face and backing (the cavity depth) is critical. Shallow cavities tend to absorb higher frequencies, while deeper cavities increase low-frequency performance. Designers tune cavity depth, hole size and backing to meet the acoustic targets of the space.
Design variables you can control (and what they change)
A big advantage of custom perforated metal is flexibility. If you’re specifying aluminum panels, you – or your client — can tune:
- Hole diameter & pattern: Small holes (microperforations) favor subtle aesthetics and can improve absorption at mid frequencies. Larger holes increase open area and can be better for higher absorption in some configurations.
- Open area (percent open): Higher open area allows more sound energy into the absorber but reduces the visible metal. Typical ranges for acoustic panels are 10%–40%, but custom designs outside this range exist.
- Panel thickness and material grade: Aluminum keeps panels lightweight and corrosion resistant. Thickness affects stiffness and acoustic coupling; thin aluminum is common when weight and formability matter.
- Backing type: Fiberglass, mineral wool, polyester (PET) or engineered acoustic composites — each has tradeoffs in fire rating, moisture resistance and absorption curves.
- Cavity depth: Adjustable on-site or pre-fitted; a simple way to tune absorption after panel fabrication.
- Surface finish / perforation layout: Powder coating, anodizing, decorative patterns — these affect appearance more than acoustics, but choosing the right finish can improve long-term durability in wet or coastal environments.
Typical applications where aluminum perforated acoustics shine
Because aluminum is durable and flexible to fabricate, perforated panels are popular in:
- Auditoriums, lecture halls and theaters (where speech clarity is essential).
- Open-plan offices and call centers (to control reverberation).
- Restaurants and hospitality (combines aesthetics with noise control).
- Transit stations and terminals (robustness and maintainability).
- Exterior façades with acoustic needs (when paired with appropriate insulation and weatherproofing).
Practical tips for successful spec and installation
- Start with acoustic targets. Don’t pick hole patterns first — define the reverberation time or absorption coefficients you need, then tune hole size, backing and cavity.
- Use test data when possible. Lab-tested absorption coefficients (NRC, αw or ISO reports) help avoid guesswork.
- Balance aesthetics and performance. If you want a continuous metallic look, choose micro-perforation and adjust cavity depth. For strong absorption you might accept larger visible holes.
- Mind fire and building codes. Select backing and core materials that meet local fire ratings. Aluminum faces are noncombustible but cores can vary.
- Plan for maintenance. Aluminum panels are easy to clean; design removable panels or accessible mounting systems for inspections.
- Weatherproofing for exterior use. If panels are used outdoors, use proper coatings and consider drainage and sealing to protect backing materials.
Real-world example (quick case study)
Imagine a 200-seat lecture hall with unpleasant mid-range echo. The design team chose 1200 x 600 mm aluminum panels with 3 mm round holes at a 10 mm pitch (≈ 15% open area), backed with 50 mm mineral wool and a 40 mm air cavity. That combination noticeably reduced speech reverberation without changing the modern metal aesthetic. In another scenario, micro-perforated aluminum with PET backing delivered a slim 20 mm profile ideal for retrofit ceilings where depth was limited.
Common questions (short answers)
Q: Are aluminum perforated panels fire-safe?
A: The aluminum face is noncombustible; the overall system’s fire rating depends on the backing and adhesive. Always specify fire-rated core materials for public buildings.
Q: Can perforated metal panels be curved or shaped?
A: Yes — aluminum is highly formable and can be bent, folded, or shaped to create 3D installations while keeping perforations consistent.
Q: Is aluminum better than steel for acoustics?
A: Both work acoustically, but aluminum is lighter, corrosion-resistant and often preferred where weight or appearance matter. Stainless or galvanized steel are chosen for heavy-duty or outdoor settings.
If you’re specifying acoustic treatments, start by sharing the room dimensions, target reverberation time, and a simple photo of the space. From there you can decide between micro-perforation for thin profiles or larger-hole panels for higher open area and different visual effects.
Interested in samples or a custom quote? Email your drawings or questions to info@perfsheet.com — we can provide material options, recommended hole patterns, sample pieces and lead-time estimates for one-off prototypes or large production runs.
